DC Motor Control Evaluation Board with NEC Electronics 78K0 Processor
Motor Control Programming Starter Kit
Equipped with NEC Electronics 8 bit 78K0 Processor
All-in one package configured with an evaluation board and development tools
Overview
Motor Control Programming Starter Kit

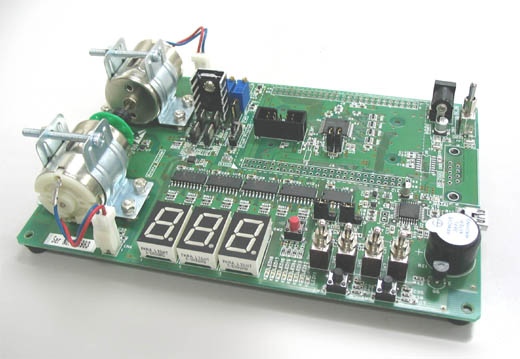

The DC Motor Control Evaluation Board is a motor control programming starter kit equipped with a 78K0 series NEC Electronics embedded processor. It is designed for beginners, and can be used to aid in learning the fundamentals of DC motor control programming. A stepping motor version is also available.

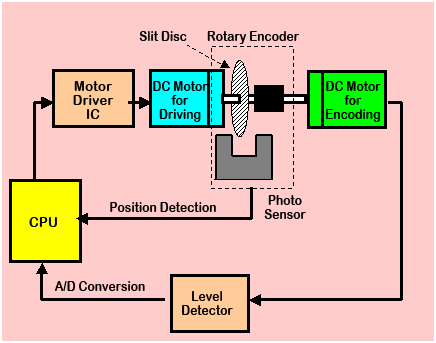

Includes PID Control Program Examples for Basic Motor Control
This package includes PID control program examples that can be used to learn PID speed control, PID position control, motor rotating control, LED control, A/D converter control and switch I/O control.
Specifications
| No. | Item | Spec. | |
| 1 | CPU | CPU | Device Name : uPD78F0513D (NEC Electronics) |
| Package : 44pin QFP | |||
| Main Clock 20MHz | |||
| Internal Memory: 32KByte (Flash) / 1KByte (SRAM) | |||
| General Purpose I/O : 37 ports | |||
| AD Converter : 10bit , 8ch | |||
| Timer: 6 types | |||
| On-Chip debugging capability | |||
| CPU Clock | Main Clock : 20MHz, Ceramic Oscillator | ||
| Sub Clock : 32.768kHz, Crystal Oscillator (Optional) | |||
| Reset Circuit | Push Switch for Reset (Red) | ||
| Flash Writing | Slide Switch for changing flash mode | ||
| LED flash mode indicator (Red) | |||
| 2 | IF | Power | DC Jack (2.1mm in diameter) |
| Power Toggle Switch | |||
| Power LED (Green) | |||
| USB | USB-Serial Conversion IC: FT232BM | ||
| Clock: 6MHz Ceramic Oscillator | |||
| USB Connector (MINI-B) | |||
| Data Send/Receive LED Indicator (Red) | |||
| RS-232C | RS-232C Transceiver MAX232CSE (Optional) | ||
| D-SUB 9 Pin Connector (Optional) | |||
| Debugger | 10 Pin Connector for MINICUBE | ||
| 3 | Motor | Driving | DC Motor: RE-280 |
| Motor Driving FET : 1 | |||
| Motor Control FET (H-Bridge): 4 | |||
| FET Indicator LED (Green): 4 | |||
| Rotary Encoder | Photo Interrupter: GP1S52V-J000F | ||
| 8 Slit Disc | |||
| for Encoding | DC Motor (RE-280) | ||
| Universal Coupling: UJ2-2 | |||
| Indicators | Motor CW LED: Yellow | ||
| Motor CCW LED: Yellow | |||
| Motor Break LED: Red | |||
| Motor Stop LED: Red | |||
| 4 | Switch | General Purpose Toggle Switch: 4 | |
| General Purpose Push Switch (Black): 2 | |||
| General Purpose Variable Resistor: 1 | |||
| 5 | Indicator / Display | General Purpose Chip LED (Yellow): 8 | |
| General Purpose 7 Segment LED: 3 | |||
| 6 | Buzzer | General Purpose Buzzer: 1 | |
| 7 | Sensor | Temperature Sensor: S-8120CNB x 1 | |
| Photo Sensor (CDS): 9P5-1/H x 1 | |||
| 8 | Power Supply | DC 5V | |
| 9 | MAX Current Consumption | 1.5A | |
| 10 | Board Size | 108mm x 160mm | |
