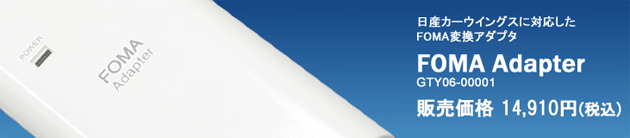

FOMA Adapter
FOMA Mobile Phone Adapter for NISSAN CarWings
This adapter allows the consumer to connect their FOMA compatible mobile phone to their NISSAN CarWings navigation system. Doing so allows the user to access the car's navigation controls from the convenience of their mobile device through voice and touch. This product is currently available on the Japanese market.
FOMA Adapter Overview
Hands-Free Talk Support
Enables the user to access the car's navigation controls hands-free by simply talking into their mobile phone.
Battery Charger
A built in re-charger for your mobile phone is included in the FOMA adapter using the car's cigarette lighter.
Mobile Phone to Car Navigator Data Transfer
Data from the user's mobile phone, such as telephone numbers, can be transferred to the car navigation system via the FOMA adapter.
Stylish Design
The FOMA adapter comes in a clean white compact and light-weight design.
Specifications
| Model No. | GTY06-00001 |
| FOMA I/F | 10 pin Special Connector for FOMA |
| Navigation I/F | 16 pin Special Connector for PDC |
| Power Supply | Supplied from Car Cigarette Lighter |
| Power Voltage | DC 12V |
| Current Consumption | 230mA (during typical use) |
| Permissible operating temperature range |
from +5 to +35 degree centigrade (Humidity 80% or lower, no condensation) |
Permissible storage temperature range |
from -20 to +60 degree centigrade (Humidity 80% or lower, no condensation) |
Dimensions |
56 (W) x 20 (D) x 114 (H) mm |
Cable Length |
170mm |
Weight |
Approximately 70g |
