No.1 System Simulator
No.1 System Simulator Automotive ECU Examples

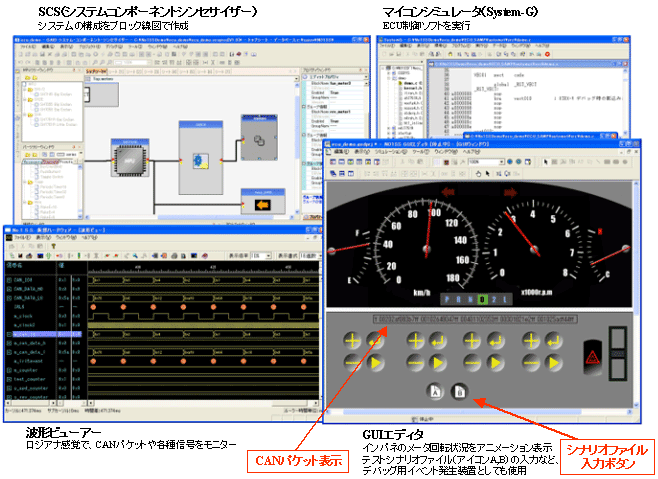

Instrument Panel Simulation using CAN Communication
Automobile instrument panel simulation that receives packet data from the CAN networked ECUs. After the data is received, information such as the car speed, engine rotation, temperature and fuel remaining will be displayed.

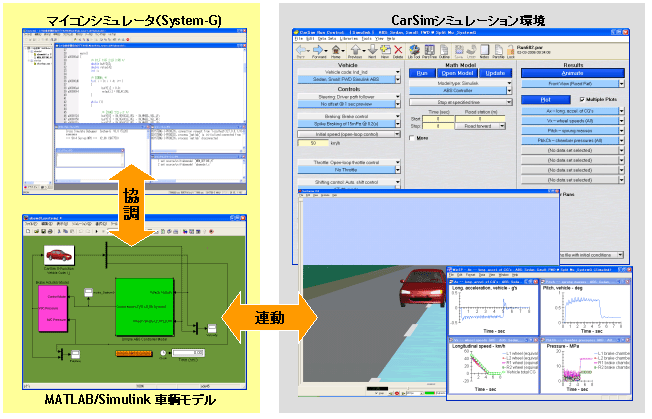

Anti-Lock Brake System Simulation using MATLAB/Simulink and CarSim
Performs ABS system simulations using GAIO's ISS connected with MathWork's MATLAB/Simulink and Mechanical Simulation's CarSim. This simulation features an animated display of the car movement to view how the ABS system performs.
Car Engine Control Simulation using MATLAB/Simulink
Engine control simulation is possible using GAIO's ISS to execute the target control software while connected with MATLAB/Simulink engine models.
A/C Control Simulation
Simulation of a modern air conditioning control system capable of sensing temperature fluctuations in order to maintain a comfortable and cool environment inside the vehicle.

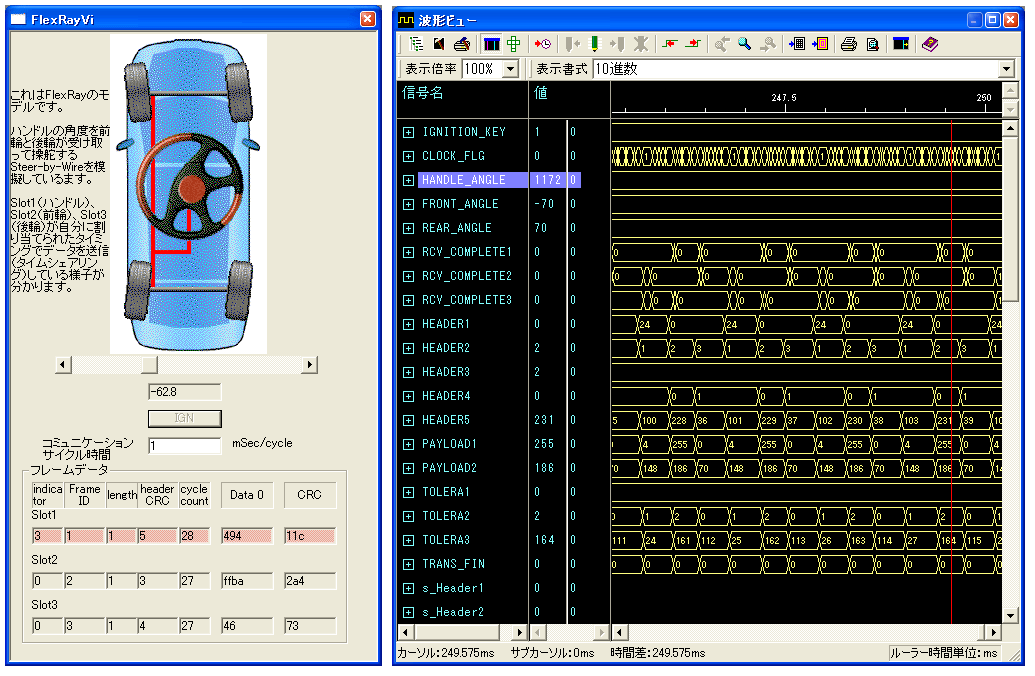

FlexRay Steering Control Simulation
FlexRay steer-by-wire system simulation with compatibility for real-time FlexRay signal monitoring. This simulation includes a FlexRay packet data generator as well as displays for the data and wheel/tire rotation. The FlexRay packet data is generated from measurements taken from the steering wheel in real-time, and then displayed in the appropriate windows.
No.1 System Simulator Office Automation Equipment Examples
Printer Paper Feeding 3D Simulation Model using G-VPM
Using GAIO's G-VPM program, 3D mechanical simulation models can be generated from 2D designs created with MS-VISIO. These simulation models can be used to aid both the software and mechanical designers in reviewing the specifications of the design prior to actual development.
Printer Paper Feeding Simulation using 'VMech Simulator on XVL'
Verifies the paper feeding control software through co-simulation using GAIO's ISS and InterDesign's VMech Simulator on XVL.
